Description
| KOD
CODE |

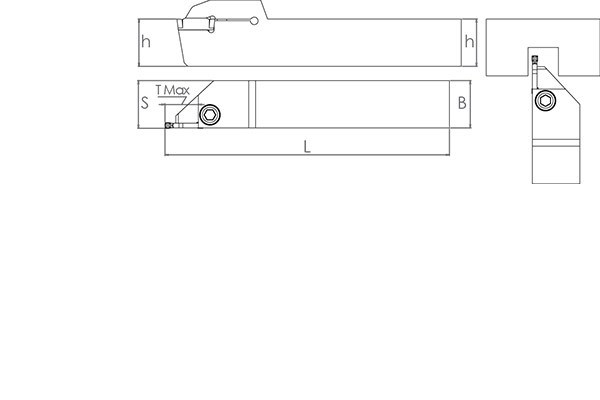

ÖLÇÜLER
DIMENSION (mm) |
KESİCİ UÇ
INSERT |
YEDEK PARÇALAR
SPARE PARTS |
||||||
| BDKT R/L ZCC-CT ZT.. | h | B | L | S | t
max |
Sıkma Vidası
Clamp Screw |
Pul
Stamp |
Anahtar
Allen Key |
|
| 1616 BDKT R/L-ZCC2-2C t max:18 | 16 | 16 | 100 | 16.3 | 18 | ZTDB 2 ZCC-CT UCA UYGUNDUR
FOR ZCC-CT INSERT |
BKTV M5x20 | – | AA4 |
| 2020 BDKT R/L-ZCC2-2C t max:18 | 20 | 20 | 125 | 20.3 | 18 | BKTV M6x25 | AA5 | ||
| 2525 BDKT R/L-ZCC2-2C t max:18 | 25 | 25 | 150 | 25.3 | 18 | ||||
| 1616 BDKT R/L-ZCC2-3C t max:18 | 16 | 16 | 100 | 16.5 | 18 | ZTFD 3 ZCC-CT
UCA UYGUNDUR FOR ZCC-CT INSERT |
BKTV M5x20 | AA4 | |
| 2020 BDKT R/L-ZCC2-3C t max:20 | 20 | 20 | 125 | 20.3 | 20 | BKTV M6x25 | AA5 | ||
| 2525 BDKT R/L-ZCC2-3C t max:22 | 25 | 25 | 150 | 25.3 | 22 | ||||
| 2020 BDKT R/L-ZCC2-4C t max:20 | 20 | 20 | 125 | 20.5 | 20 | ZTGD 4 ZCC-CT
UCA UYGUNDUR FOR ZCC-CT INSERT |
|||
| 2525 BDKT R/L-ZCC2-4C t max:22 | 25 | 25 | 150 | 25.5 | 22 | ||||
| 2020 BDKT R/L-ZCC2-5C t max:22 | 20 | 20 | 125 | 20.5 | 22 | ZTHD 5 ZCC-CT
UCA UYGUNDUR FOR ZCC-CT INSERT |
|||
| 2525 BDKT R/L-ZCC2-5C t max:25 | 25 | 25 | 150 | 25.5 | 25 | ||||
